D Series Connectors M12

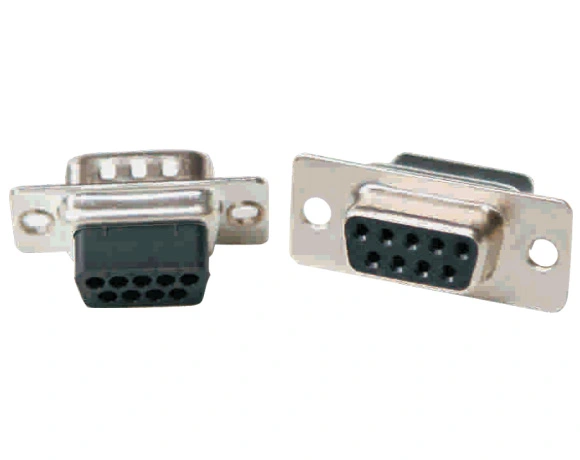

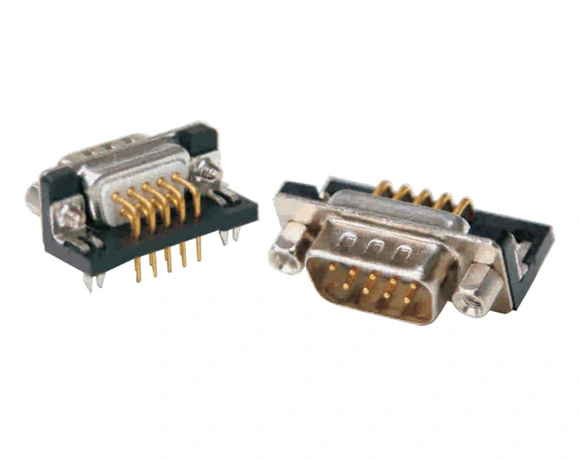

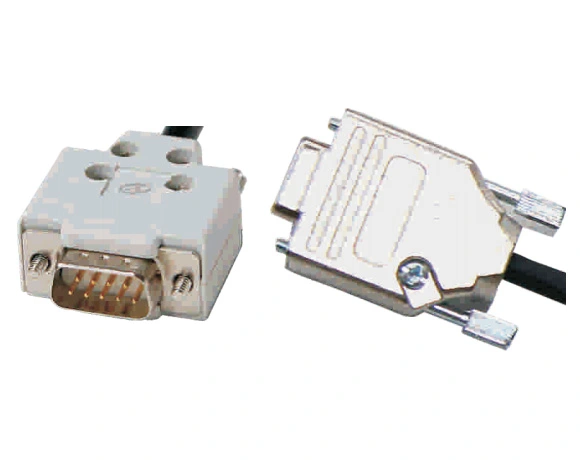

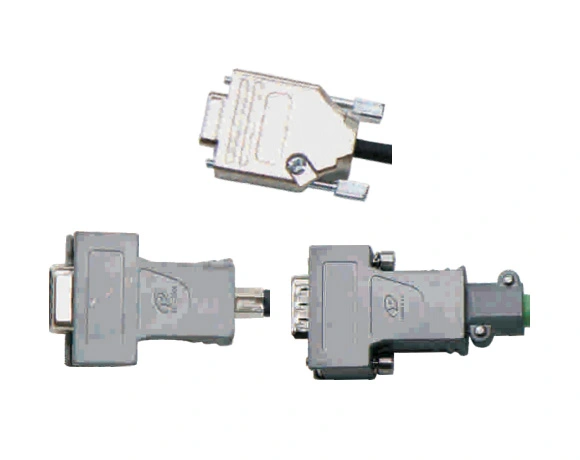

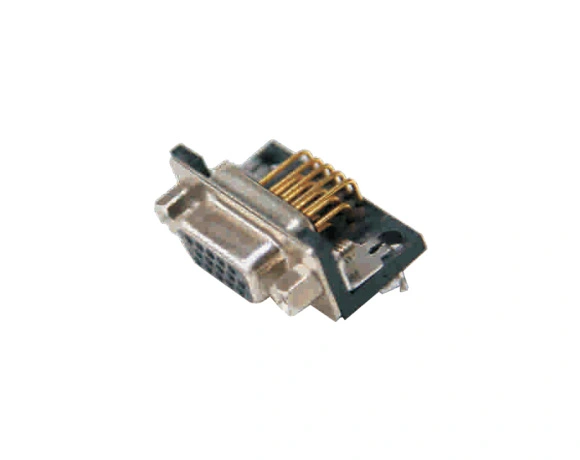

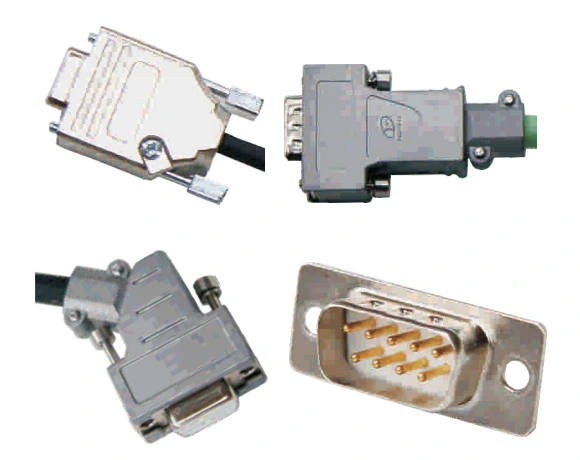

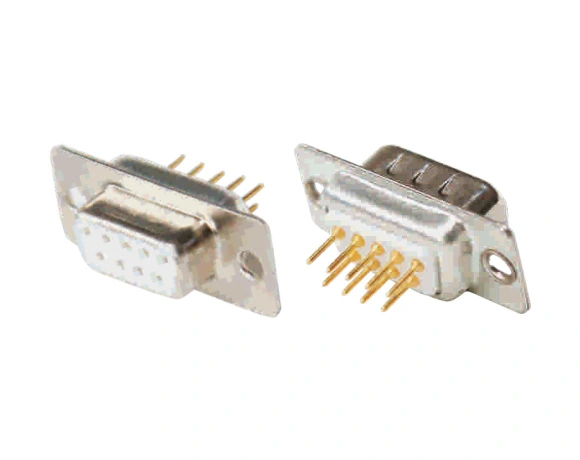

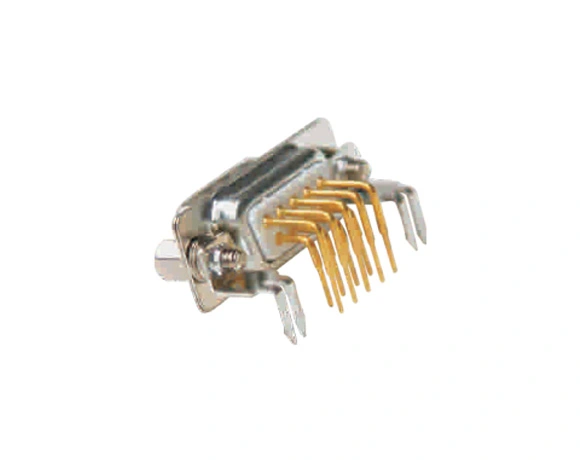

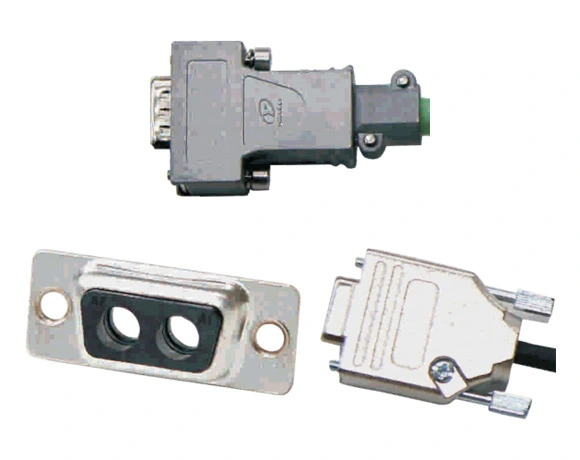

D-Sub series connectors (referred to as D series), D series rectangular connectors are a kind of international common electrical connectors, with good electrical performance, electromagnetic compatibility performance and environmental resistance performance. With a variety of termination methods and flexible installation. A variety of other locking screws and cable clamps, cable boxes are available.

Specifications of D Series Connectors

Environmental parametersWorking temperature-65~+165℃
Relative humidity99%~95% at 40°C
Electrical performanceWorking voltage300V
Working currentφ0.76 contact pair-2A
φ1 contact pair-5A

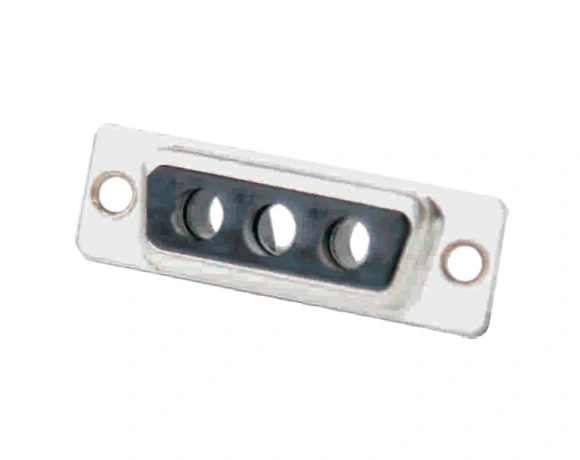

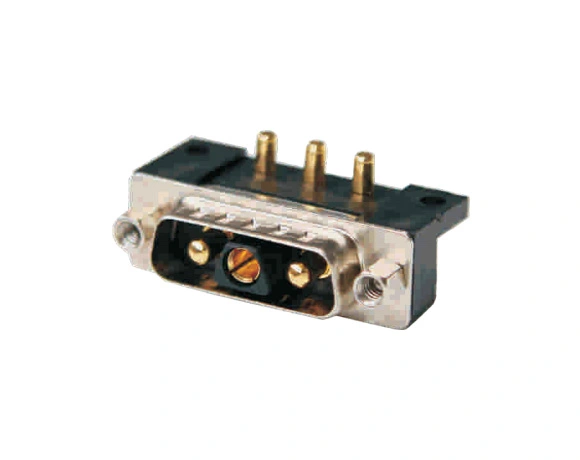

φ3.6 contact pair-10A, 20A, 30A, 40A (optional)
Withstanding voltage50Hz effective, 1000V
Contact resistanceφ0.76 contact pair
φ0.76 contact pair-≤15mQ
φ1 contact pair-≤10mΩ
φ3.6 contact pair-≤4mΩ
Insulation resistance>5000MΩ
Separation forceφ0.76 contact pair
φ0.76 contact pair-0.2~1.5N
φ1 contact pair-0.3~2.0N
φ3.6 contact pair-3~6N
Holding force of contactφ3.6 contact pair -3~6N
φ3.6 contact pair-40N
VibrationVibration frequency 10~200Hz, acceleration 196m/s².
Mechanical performanceConnection durability500 times
