Yonggui presents HDC-HE10-F-M Rectangular Connectors, a reliable and efficient solution for your electrical needs. These industrial connectors feature a 10 pin design, ensuring secure and stable connections. With a weight of 0.04kg, they are lightweight and easy to handle. They are UL and CE certified, guaranteeing the highest standards of quality and safety. The HDC-HE10-F model is a female plug with bolted connection, while the HDC-HE10-M model is a male plug with the same features.
Part number:
Male: 113060100487
Female: 113060200474
| Model | Code | Weight（kg） | UL | CE | Describe |

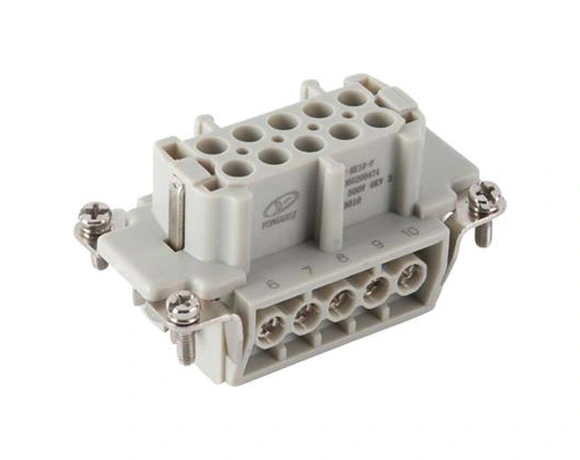

| HDC-HE10-F | 113060200474 | 0.04 | √ | √ | Female plug, bolted connection, 10+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²; Polycarbonate, RAL 7032 (egg lime). |

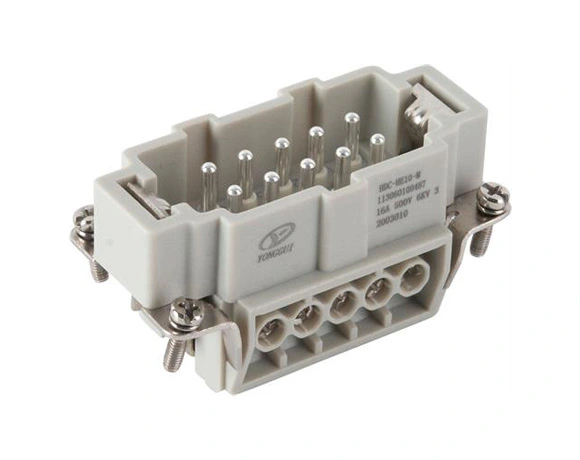

| HDC-HE10-M | 113060100487 | 0.04 | √ | √ | Male plug, bolted connection, 10+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²; Polycarbonate, RAL 7032 (egg lime). |
