These heavy-duty connectors feature a 16 pin design, making it perfect for industrial applications that require strong and reliable connections. With a weight of just 0.04kg, these industrial connectors are lightweight yet durable. They are UL and CE certified, ensuring safety and quality standards. The female plug variant, HDC-HE10-FC, has a cold pressed connection with 10+PE pins, and can handle a rated current of 16A and rated voltage of 500V. The male plug variant, HDC-HE10-MC, offers the same specifications. Made from high-quality polycarbonate material in RAL 7032 (egg lime) color, these connectors are built to last.
Part number:
Male: 113060100503
Female: 113060200490
| Model | Code | Weight（kg） | UL | CE | Describe |

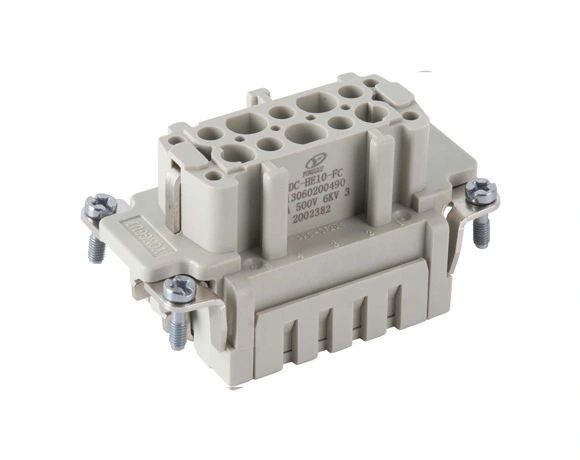

| HDC-HE10-FC | 113060200490 | 0.04 | √ | √ | Female plug, cold pressed connection, 10+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |

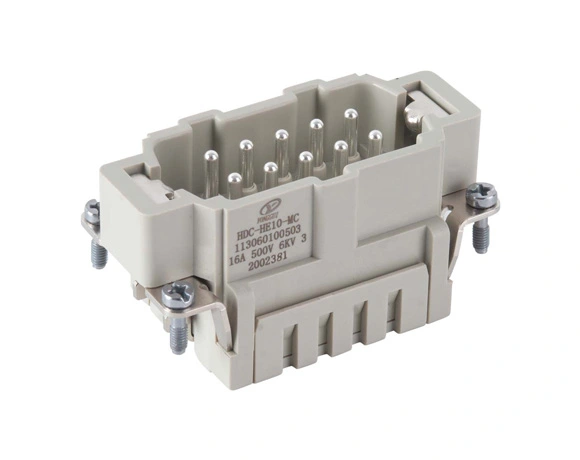

| HDC-HE10-MC | 113060100503 | 0.04 | √ | √ | Male plug, cold pressed connection, 10+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |
