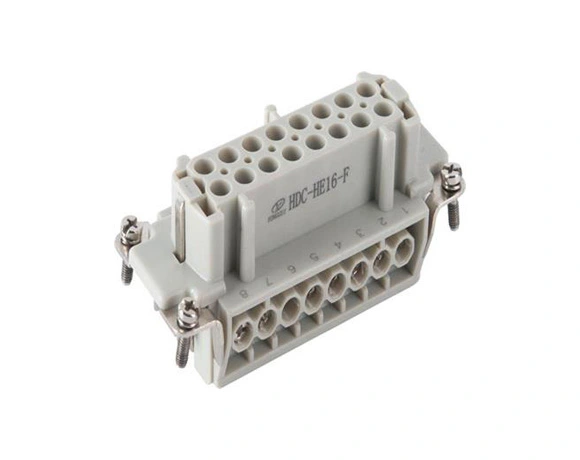

Yonggui HDC-HE16-F-M Rectangular Connectors: connector inserts with reliable performance. These industrial connectors feature a female plug with a bolted connection, 16+PE. Rated current is 16A and rated voltage is 500V. Tightening torque is 0.5N · m, suitable for wire specifications of 1-2.5mm². Made from high-quality polycarbonate in RAL 7032 (egg lime) color. UL and CE certified. Choose Yonggui for top-notch connector inserts.
Part number:
Male: 113060100488
Female: 113060200475
Model | Code | Weight（kg） | UL | CE | Describe |
| HDC-HE16-F | 113060200475 | 0.06 | √ | √ | Female plug, bolted connection, 16+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²； Polycarbonate: RAL 7032 (egg lime). |
| HDC-HE16-M | 113060100488 | 0.06 | √ | √ | Male plug, bolted connection, 16+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²; Polycarbonate: RAL 7032 (egg lime). |
