HDC-HE18-FC-MC Rectangular Connectors

These heavy duty connectors are designed with precision and durability in mind. With a weight of just 0.05 kg, they are lightweight yet robust. These industrial connectors are UL and CE certified, ensuring their quality and safety. The HDC-HE18-FC model features a female plug with a cold pressed connection, while the HDC-HE18-MC model features a male plug. Both models have 18+PE pins and can handle a rated current of 16A and a rated voltage of 500V. They are compatible with wire specifications ranging from 0.14 to 4mm². Made with high-quality polycarbonate material in a stylish RAL 7032 (egg lime) color, these connectors are not only functional but also aesthetically pleasing.

Part number:

Male: 113060100516

Female: 113060200506

Specifications of HDC-HE18-FC-MC Rectangular Connectors

ModelCodeWeight(kg)ULCEDescribe

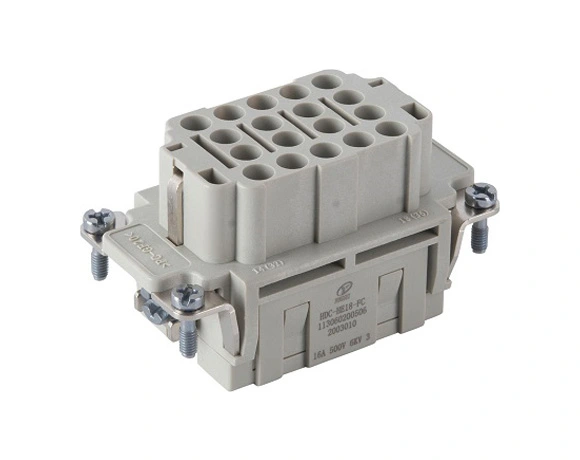

HDC-HE18-FC1130602005060.05

Female plug, cold pressed connection, 18+PE;

Rated current: 16A;

Rated voltage: 500V;

Wire specification: 0.14-4mm ²;

Polycarbonate, RAL 7032 (egg lime).

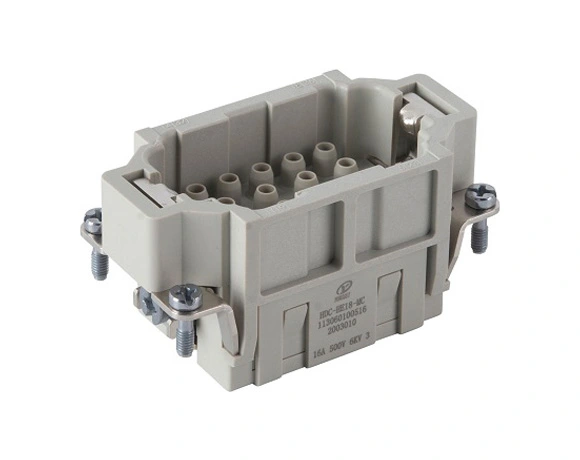

HDC-HE18-MC1130601005160.05

Male plug, cold pressed connection, 18+PE;

Rated current: 16A;

Rated voltage: 500V;

Wire specification: 0.14-4mm ²;

Polycarbonate, RAL 7032 (egg lime).
