𐄀 Technology Connection to Future
Female and male plug options available
Cold pressed connection for secure and reliable connection
Rated current of 16A and rated voltage of 500V
Suitable for wire specification of 0.14-4mm²
Made from high-quality polycarbonate material in RAL 7032 (egg lime) color
These industrial connectors are designed and manufactured by Yonggui, meeting the standards of iec60664. They offer secure and reliable connections with a rated current of 16A and rated voltage of 500V. These connectors are suitable for wire specifications ranging from 0.14mm² to 4mm². The connectors are made from durable polycarbonate material in a stylish RAL 7032 (egg lime) color.
Part number:
Male: 113060100517
Female: 113060200507
| Model | Code | Weight（kg） | UL | CE | Describe |

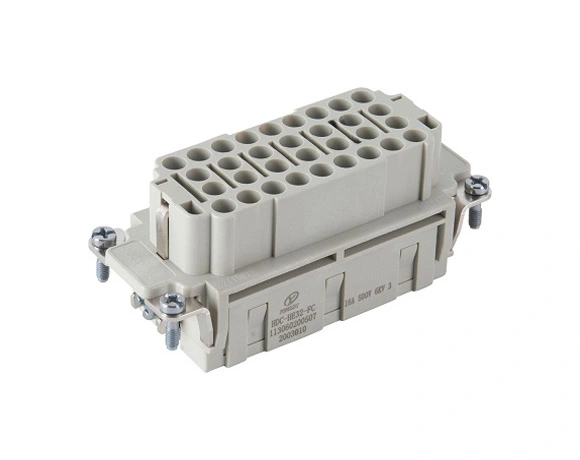

| HDC-HE32-FC | 113060200507 | 0.06 | √ | √ | Female plug, cold pressed connection, 32+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |

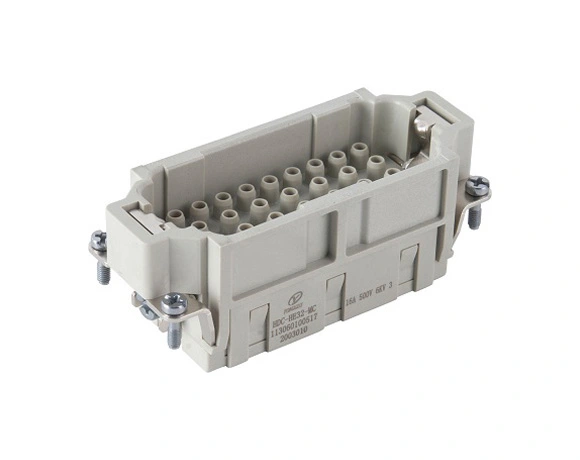

| HDC-HE32-MC | 113060100517 | 0.06 | √ | √ | Male plug, cold pressed connection, 32+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |
Tailoring connectors to your unique needs.
Provide system-level solutions
Respond to needs within 12 hours
